SALIENT FEATURES

  • 99.9% Copper Winding
  • In Built with Thermal Over load Protector
  • Specially designed for wide voltage Operation
  • Powder coated multi-color stator body
  • Double sealed ball bearing.
  • Noiseless Operation.
  • In Built Non return valve.
  • 30 feet suction lifting capacity.

TECHNICAL SPECIFICATION

  • Power Range: 0.5HP to 1.0HP
  • Speed: 2880 RPM
  • Versions: Single Phase
  • Max. total head: Up to 48 mtr
  • Max.flow rate: Up to 2600 LPH
  • Max.suction lift: 9 mtr
  • Class of insulation: B
  • Nominal size (Suc. & Del.): 25 x 25mm

RANGE OF MODEL

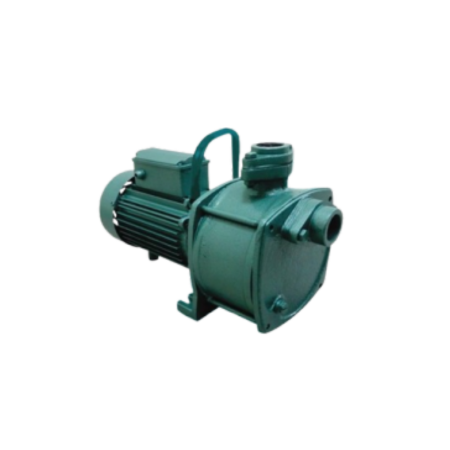

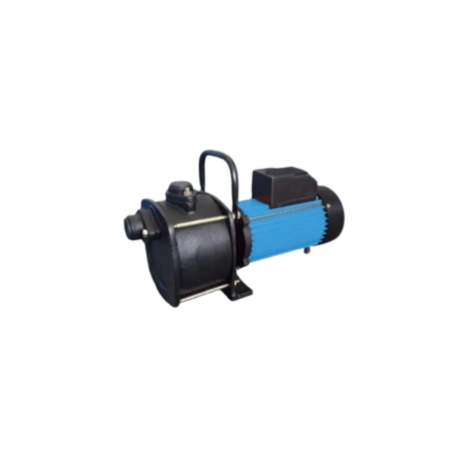

ASP-7/422, ASP-7/422N & ASP-8/722

Application

  • Domestic
  • Small Gardening
  • Pressure Boosting
  • Civil water supply application
