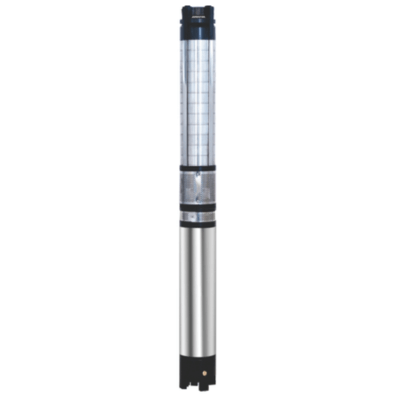

V6 Slim Submersible Pumpset

The V6 Slim Submersible Pumpset is designed for deep borewell installations requiring higher discharge and efficient performance in narrow well conditions. Built with robust engineering and corrosion-resistant materials, this series offers reliable operation with minimal maintenance.

Salient Features

  • High-efficiency investment casting diffusers made from AISI 304 material

  • Sand-guard protected guide bushes for extended service life

  • Upper thrust provision included in every model

  • Hard chrome plated bearing sleeves for improved wear resistance

Technical Specifications

  • Head Range: 20 to 300 meters

  • Discharge Range: 95 to 535 LPM

Motor Rating

  • 3.0 HP to 5.0 HP (Single Phase – 230V, 50Hz AC Supply)

  • 5.0 HP to 15 HP (Three Phase – 380V / 415V, 50Hz AC Supply)

Voltage Range

  • 160V to 250V (Single Phase)

  • 200V to 440V (Three Phase)

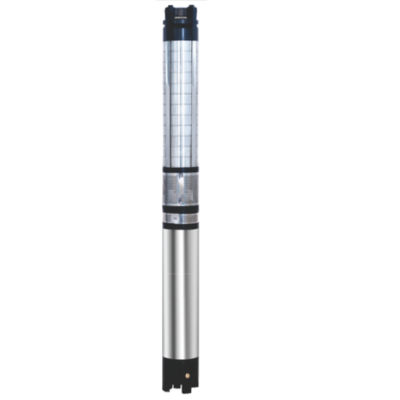

V6 S.S. (50 Ft. & 70 Ft.) Submersible Pumpset

✅ Salient Features

  1. High efficient investment casting process diffusers are used with AISI 304 Material.

  2. All pumps are provided with suction guide support.

  3. Winding wire wrapped with superior polymer to withstand wide voltage fluctuation.

  4. Rotors painted with special epoxy paint for long life.

⚙️ Technical Specification

Head Range

  • (A) 50 Feet: 10 to 425 Meter

  • (B) 70 Feet: 18 to 475 Meter

Discharge Range

  • (A) 50 Feet: 40 to 780 LPM

  • (B) 70 Feet: 70 to 440 LPM

Motor Rating

  • 3.0 HP to 5.0 HP

    • Single Phase: 230V, 50Hz AC Supply

  • 3.0 HP to 30 HP

    • Three Phase: 380V / 415V, 50Hz AC Supply

Voltage Range

  • 160V to 250V (1 Phase)

  • 200V to 440V (3 Phase)

V6 C.I. (Radial / Mix Flow) Submersible Pumpset

✅ Salient Features

  1. Robust construction ensuring pumpset durability.

  2. Winding wire wrapped with superior polymer to withstand wide voltage fluctuation.

  3. Rotating parts dynamically balanced to reduce vibration & noise.

  4. Rotors painted with special epoxy paint for long life.

⚙️ Technical Specification

Head Range

  • (A) Radial Flow: 13 to 245 Meter

  • (B) Mix Flow: 9 to 216 Meter

Discharge Range

  • (A) Radial Flow: 70 to 450 LPM

  • (B) Mix Flow: 200 to 1150 LPM

Motor Rating

  • 3.0 HP to 5.0 HP

    • Single Phase: 230V, 50Hz AC Supply

  • 3.0 HP to 30 HP

    • Three Phase: 380V / 415V, 50Hz AC Supply

Voltage Range

  • 160V to 250V (1 Phase)

  • 200V to 440V (3 Phase)
